UltraQuiet Acoustic Panels
The easiest way to reduce noise and reverberation - with space age BASOTECT®,
Excellent acoustic absorption, (typical NRC 0.9, SAC B, AlphaW 0.85),
Ultra light weight (standard panel is just 400 grams),
Simple installation with common adhesives,
No fibres to contaminate the air,
Environmentally friendly - certified to the OEKO-TEX® Standard 100,
Does not support mold and bacteria growth,
Excellent thermal insulation,
High fire rating.
Ultraquiet panels reduce classroom noise

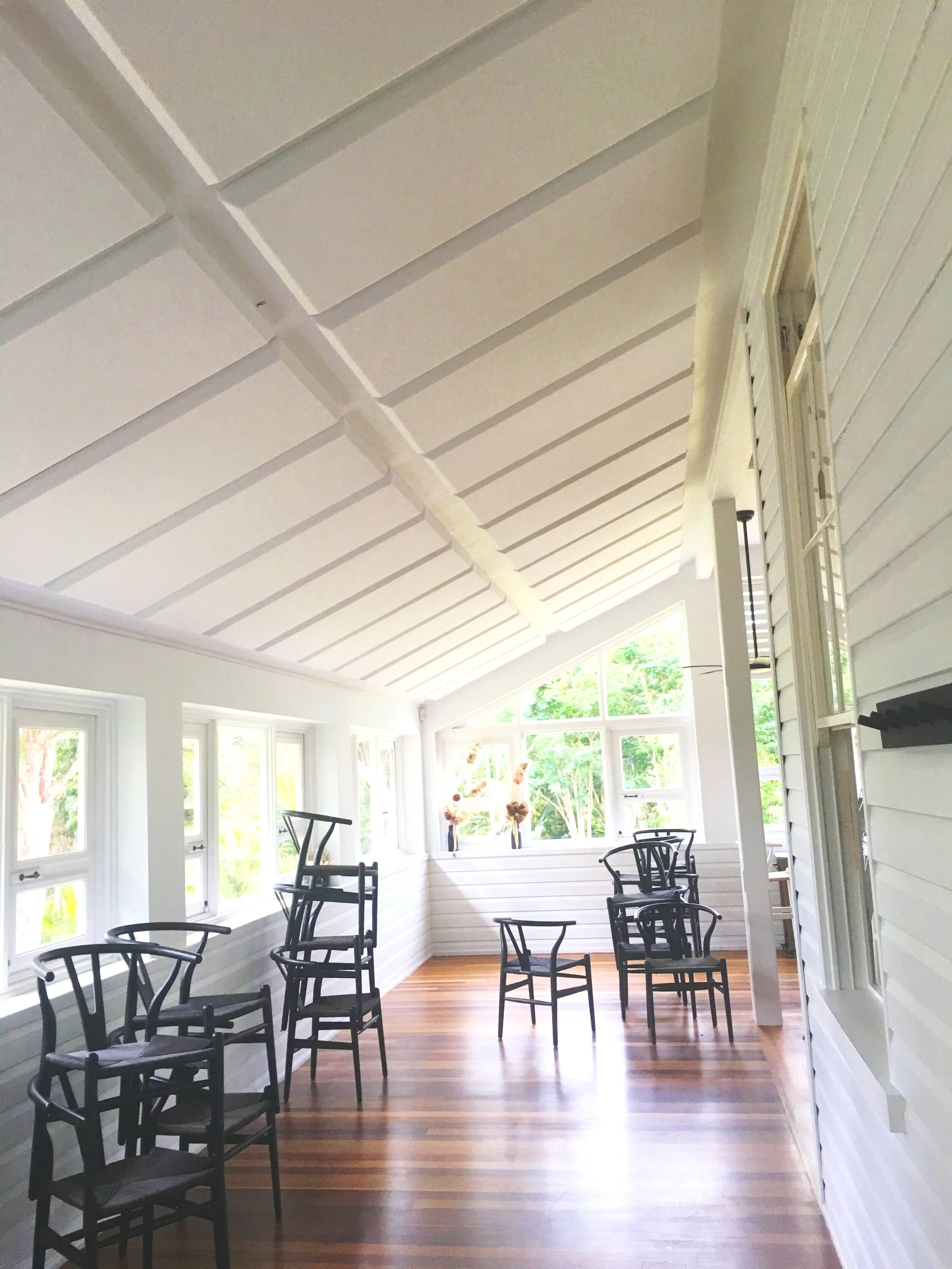

UltraQuiet Acoustic Panels reduce restaurant noise
If you’ve seen enough and you want to order or ask questions, give us a call or click on the contact us/request a price list link. If you want the gory technical details, keep scrolling…….
Basotect® is a flexible open-cell foam made from melamine resin, a thermoset polymer. Basotect's characteristic feature is its three-dimensional network structure consisting of slender and thus easily shaped filaments. Basotect is flame resistant, applicable up to 240°C, abrasive and has consistent physical properties over a wide range of temperature.
Soundproofing and technical details
Improve the acoustic quality and comfort of a room with BASOTECT® ; It is designed to be used on walls and ceilings to reduce reverberation and noise. BASOTECT® is a flexible, open cell foam made from melamine resin, a thermoset polymer. Its characteristic feature is its three-dimensional network structure consisting of slender and thus easily shaped webs.
constant physical properties over a wide temperature range
application temperature up to 240 degrees
flame resistance
low weight
low-temperature flexibility
high sound absorption capacity

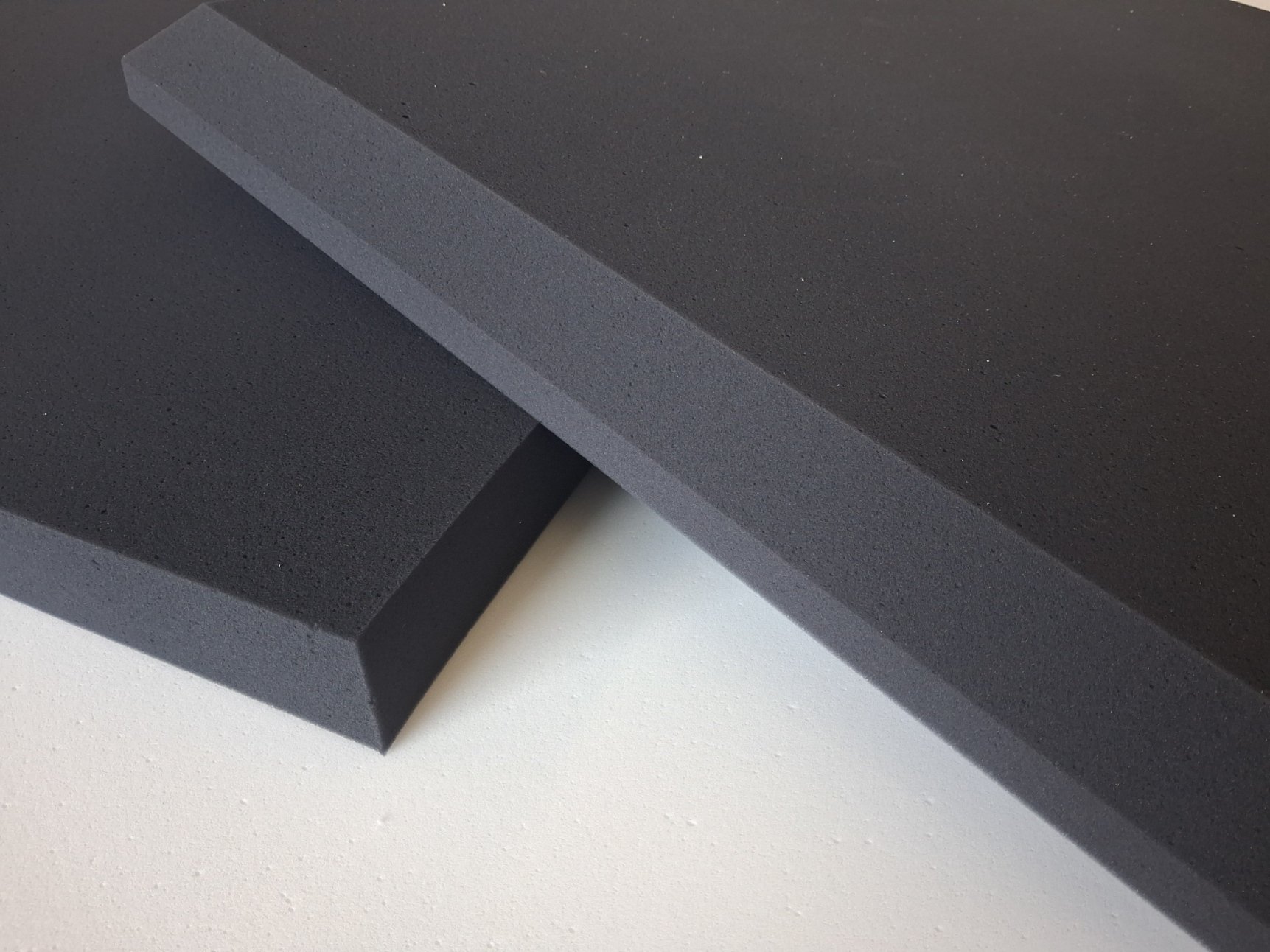

UltraQuiet acoustic panel - standard grey
Superior Sound Absorption
UltraQuiet’s porous surface ensures that sound waves easily enter the structure. The sound energy is dissipated in the filament structure, giving Basotect® an excellent sound absorption capacity. At low frequencies, improved sound absorption can be achieved, for example by adding layers of a heavier material.
Ultra Light Weight
UltraQuiet ’s open-cell foam structure contributes to its low density of 9 kg/m3.
UltraQuiet panels - swimming pool noise reduction
Fire Resistance
UltraQuiet panels meet the most important international fire safety standards. UltraQuiet ’s long-term resistance to high temperatures and excellent fire characteristics are based on the melamine resin used. The high nitrogen content of the resin is responsible for the flame-resistant property of the foam without the need to use flame retardants. UltraQuiet is a thermoset, and thus, in the event of a fire, the material does not melt or produce burning droplets when it comes into contact with flames. The foam simply chars and produces a small amount of smoke, and there is no afterglow, making UltraQuiet particularly suitable for applications with high fire safety requirements. In tests on the fire characteristics required to meet national and international standards, UltraQuiet achieves the highest classification possible for organic materials.
UltraQuiet panels - custom shapes are easily made
